UK(British Plug) with Fuse
UK(British Plug)with Fuse: Cable Rating UK FLug:HO5W-F VDE(3C*0.75 sq.mm)
Rating: 5A, 10A 13A & 250V~
Plug Standard:BS 1363 /ASTA
Pins: 3Pins Flat
Conndustor:Annealed Bared Copper
Insulation :H05W-F 300/500V
2 PIN STRAIGHT (5A)
Cable Ratings ( Round): 2R50 (16/0.193) 2R75 (24/0.193)
Rating: 2.5A, 5A & 250V
Plug Standard: Non IS
Pins: Solid/Hollow Pins
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Cable Jacket: PVC Type ST1 as per IS 5831 – 84
Colour: Black (Can be made as per customer requirements)
Other Side: Any end as requested by customer
Length: AS per customer requirement
2 PIN ANGLED
Country: India
Name: Indian Plug – 2 Pin Angled
Description: 2 Pin Angled Plug for Class II appliances
Certification: BIS
Standards: IS 1293

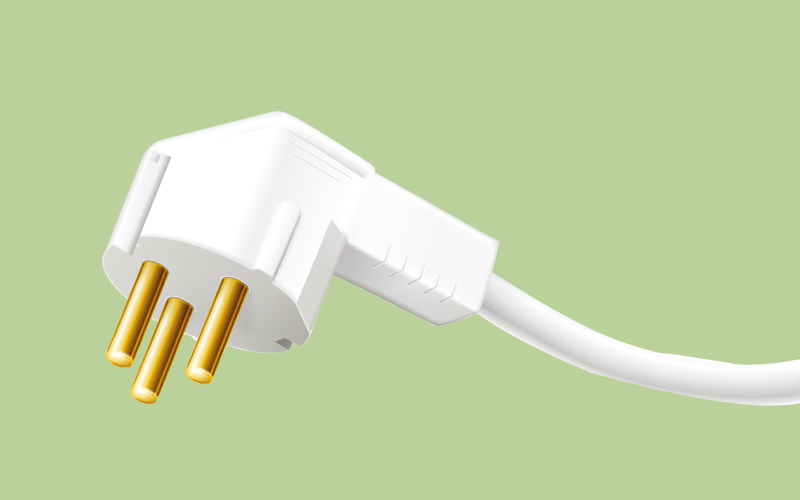

3 PIN 6 A
Cable Ratings: 24/0.2 (3c*0.7 sq.mm) 32/0.2 (3C*0.1 sq.mm)
Rating: 6A & 250V-
Plug Standard: IS 1293 : 2005
Pins: Solid/Hollow Pins
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Colour: Black / White (can be made as per customer requirements)
Other Side: Can be made as per customer requirements
Length: As per customer requirements
Matching Connector: C135 , C13RA & C13LA
Standard: IS 694 for ISI approved cable

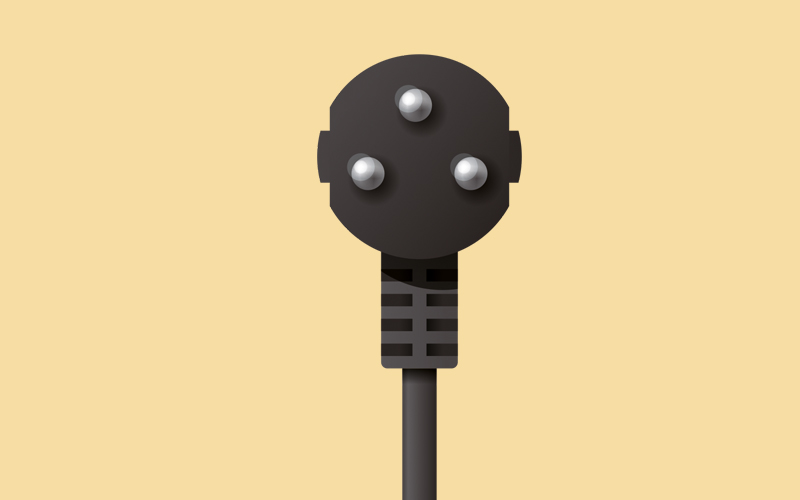

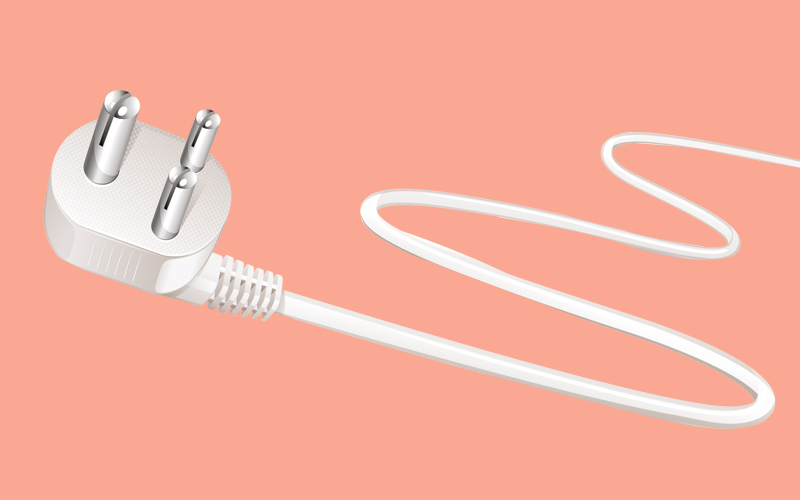

INDIAN PLUG – 3 PIN 16 A
Cable Ratings : 24/0.193 (3C*0.75 sqmm) 32/0.2 (3C*1 sqmm) 30/0.250 (3C*1.5 sqmm)
Rating: 16A & 250V~
Plug S tandard: Complying to IS 1293 : 2005
Pins: Solid/Hollow Pins
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Cable Jacket: PVC Type ST1 as per IS 5831 – 84
Colour: Black / White (Can be made as per customer requirements)
Other Side: As per customer requirements
Length: as per customer requirements
Matching Connector: C13 , C19
AUSTRALIA PLUGS – 3 PIN
Country: Australia
Name: Australia AS/NZS 3112 3 Pin
Description: 3 Pin Australian Plug for class I appliances
Certification: VDE with NSW
Standards: NSW

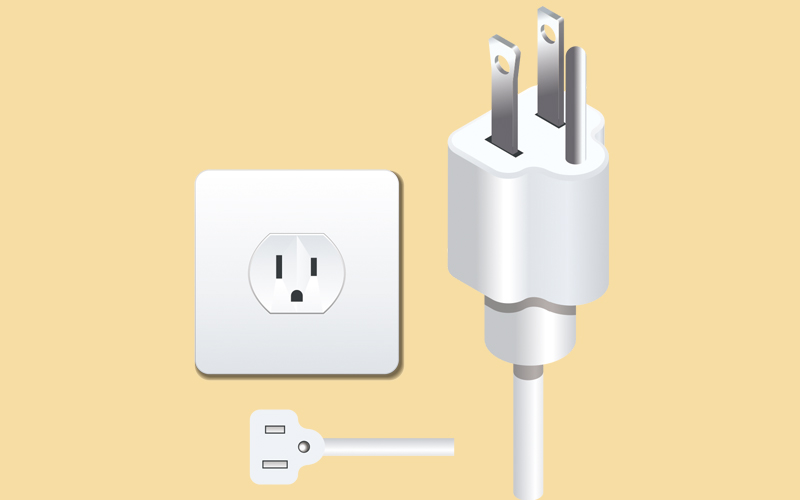

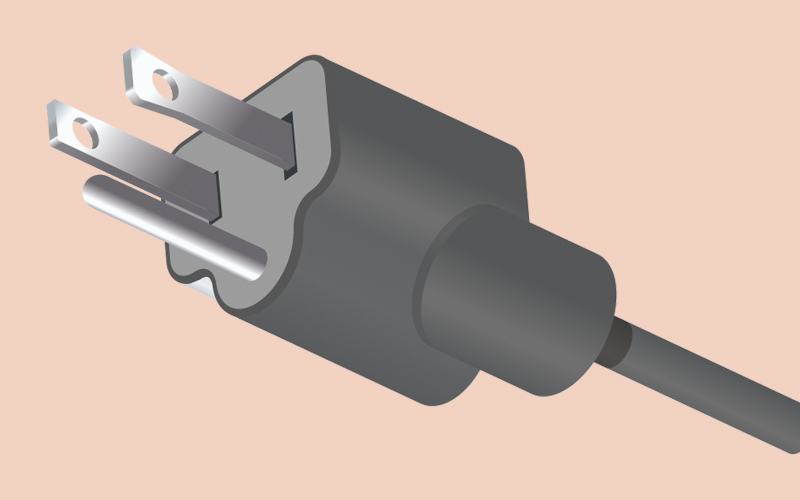

NORTH AMERICAN PLUG NEMA 5 – 15 P
Rating: 10A & 125V~
Plug Standard: 5 – 15P
Pins: As per UL standards UL 498 & UL 817
Conductor: Annealed Bare Copper
Insulation: E311111 c(UL) (UL) SVT
Other Side: As per customer requirements
Length: As per customer requirements
Matching Connector: C13 & C12 Optional
Standard: Cables as per UL SVT 3 CORE * 18 AWG

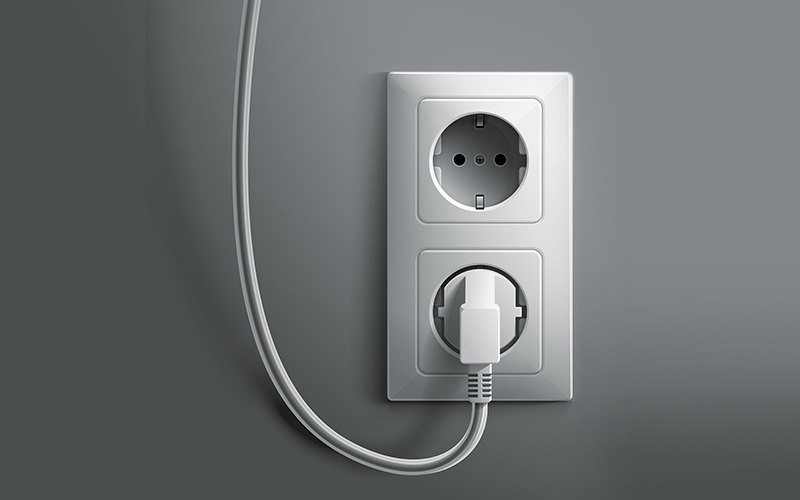

EUROPE PLUGS – 2 PIN STRAIGHT
Rating: 16A & 250V~
Plug Standard: As per Schuko
Pins: 2 Pin Male
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Cable Jacket: PVC Type ST1 as per IS 5831 - 84
Colour: Black (can be made as per customer requirements)
Other Side: As per customer requirements
Length: As per customer requirements
Matching Connector: C13 Optional
Cable: VDE 3 X 0.75 sq mm
JAPAN PLUG – 3 PIN
Country: JAPAN
Name: JAPAN PLUG – 3 PIN
Description: 3 Pin Japan Plug for class I appliances
Certification: PSE JET
Standards: H23
3 POLE STRAIGHT CONNECTOR
Cable
24/0.2(0.75 sq.mm) – 6A
Standard: IS 694 for ISI APPROVED Cables
Rating: 10A & 250V~
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Cable Jacket: PVC Type ST1 as per IS 5831 – 84
Colour: Black(Can be made as per customer requirements)
Length: As per customer requirement
5S CONNECTOR
Rating: 2.5A & 250V~
Plug Standard: Indian plug & UL approved plug
Connector Standard: CS
Pin: 3 pin Female Connector
Conductor: Annealed Bare Copper
Cable Jacket: Standard Colour Black
Colour: Standard Colour Black
Other Side: Available in any Plug Combination
Length: As per customer requirements
Matching Plug: 3 Pin Plug
SECURE LOCK
Rating: 10A & 250V~
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Cable Jacket: PVC Type ST as per IS 5831 – 84
Colour: Black (Can be made as per customer requirements)
Length: 48/0.2(1.5 sqmm) UL, CSA 18AWG
Standard: IS 694 & UL Approved Cables

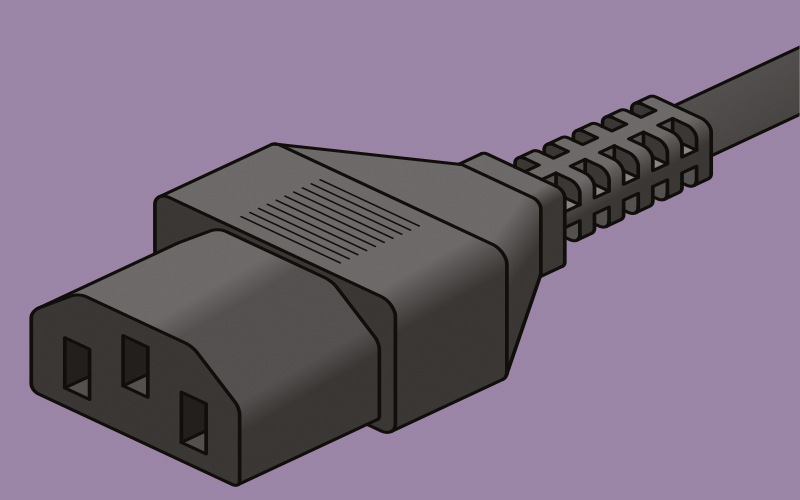

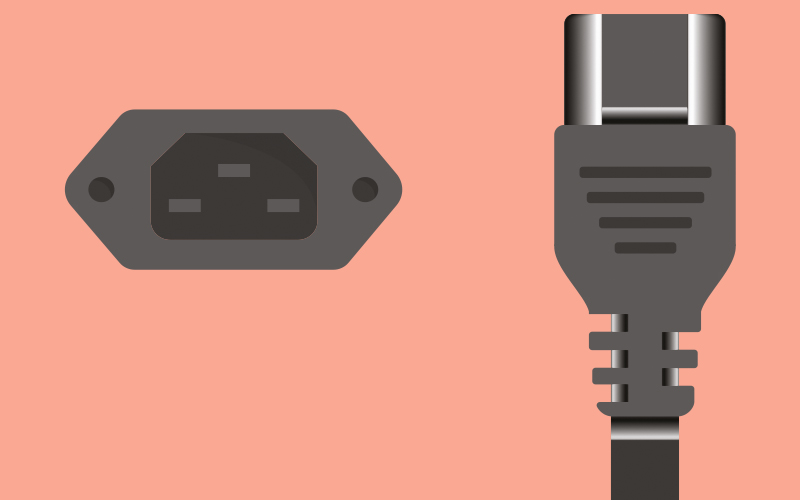

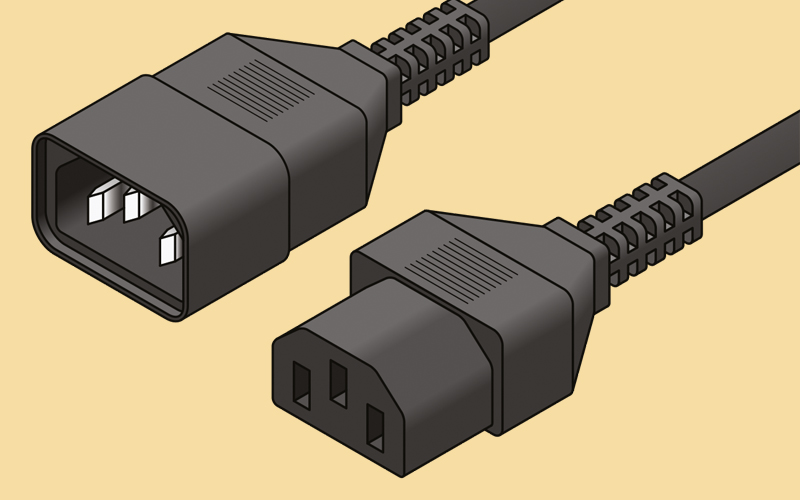

IEC C14 + C13 CONNECTOR
Rating: 10A & 250V~
Conductor: Annealed Bare Copper
Insulation: PVC Type – A as per IS 5831 – 84
Cable Jacket: PVC Type ST1 as per IS 5831 – 84
Colour: Black (Can be made as per customer requirements)
Length: As per customer requirements
